Ultrason® E, S, P (PESU, PSU, PPSU)

Specialty polymers for high-quality products

BASF’s Ultrason® grades are transparent, high-temperature resistant, amorphous thermoplastics derived from polysulfone (PSU), polyethersulfone (PESU) and polyphenylsulfone (PPSU). Their wide spectrum of properties allows them to be molded into high-quality engineering parts and highly stressed mass-produced articles. They can be processed by almost all the techniques adopted for thermoplastics.

This combination of features, coupled with ease of fabrication, has enabled Ultrason® to be applied in a wide and increasingly diversified range of applications. Ultrason® can be successfully used for applications in which other plastics, such as polyamide (PA), polycarbonate (PC), polyoxymethylene (POM) or polyalkylene terephthalates (PET, PBT), fail to meet the requirements. By virtue of their extraordinary versatility, Ultrason® resins can substitute thermosets, metals and ceramics.

The key features of Ultrason® are:
  • Specified range of temperature resistance -40°C to 225°C
  • Excellent chemical resistance (e.g. to water, acids, NaOCl, caustic soda)
  • Excellent hydrolysis resistance
  • Temperature-independent properties
  • High long-term service temperature up to 180°C
  • Good dimensional stability/High stiffness
  • High mechanical strength
  • Good electrical insulation properties
  • Favorable dielectric properties
  • Inherent anti-flame retardant properties

Ultrason® Applications

Aerospace

Automotive

Electrical & Electronics

Household & Catering

Sanitary & Water

Other Applications

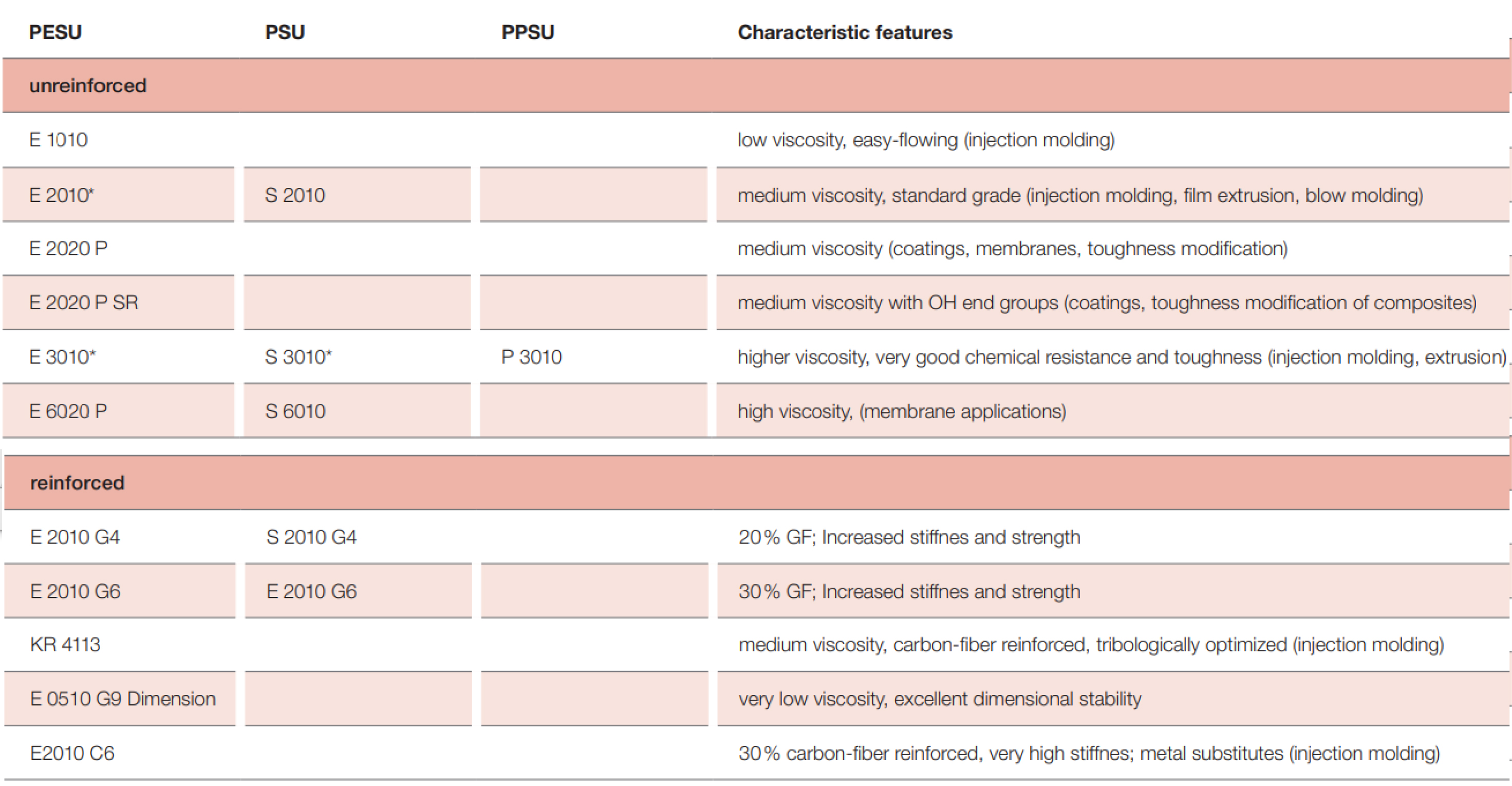

Ultrason® E, S, P

Selection guideline

Ultrason® E (PESU)
  • Higher temperature requirements
  • Higher requirements in mechanical properties (modulus, tensile)
  • Parts are exposed to non-polar solvents or chemicals (gasoline, oil, fat etc.)
  • Higher requirements in flame retardancy
Ultrason® S (PSU)
  • Less demanding temperature requirements
  • Higher clarity required
  • Good crack resistance towards repeated cycle of sterilization
  • Parts are exposed to polar solvents/chemicals (i.e. water, salt)
Ultrason® P (PPSU)
  • High stress crack resistance is needed (especially with water and steam like in superheated steam sterilization)
  • High notched impact resistance is needed
  • Requirements in flame retardancy are higher

Special grade: Ultrason® E 2020 P SR

Requirements
  • High Tg of 225°C
  • Limiting oxygen index (LOI): 38%
  • Solubility in NMP, DMAc, DMF etc.
  • SR and SR micro: OH-groups of total end groups > 50% ( typically > 70%)

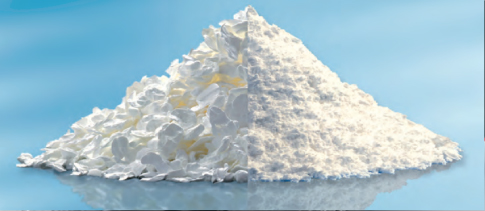

  • SR micro: powder for easier dissolution with particle size < 100μm
